Testing capacitors with a multimeter without misleading readings

What a multimeter can and cannot tell you

Testing capacitors with multimeter functions is useful when you need a quick check for capacitance value, shorts, opens, or obvious failure symptoms. The most reliable approach is to turn the power off, verify zero voltage, discharge the capacitor through a suitable resistor, isolate at least one capacitor lead from the circuit, and then measure with the meter’s capacitance mode. Compare the result with the value and tolerance printed on the capacitor or listed in the component datasheet.

A multimeter check is not a complete capacitor health test. A capacitor can measure close to its rated microfarads and still have excessive equivalent series resistance, high leakage current, poor performance under voltage, or temperature-related degradation. Treat a digital multimeter as a first diagnostic tool, not the final answer for every capacitor failure mode.

For more guides on meters, lab instruments, and diagnostic methods, see the testing equipment section.

How digital multimeters measure capacitance

Most digital multimeters with a capacitance range apply a known charging current to the capacitor, monitor the voltage change, and calculate capacitance from that response. This principle is described in manufacturer guidance from Fluke and Keysight. In practical terms, the meter is not simply “looking” at the capacitor. It is running a timed low-level electrical test and converting the result into farads, usually displayed as nF, µF, or mF.

This explains two common user experiences. Large capacitors may take several seconds to settle because they need more charge before the meter can complete its calculation. Very small capacitors can be affected by lead capacitance, fixture capacitance, and even hand position. For low-value parts, using the meter’s relative or zero function with the leads open can reduce the effect of residual capacitance in the test leads.

It also explains why two meters may not show exactly the same value. Capacitance readings can depend on the test method, selected range, applied signal level, internal algorithm, and measurement speed. Dedicated LCR meters give the user more control over test frequency, equivalent circuit model, and measurement conditions, while many handheld multimeters keep those settings fixed for convenience.

Safety steps before testing a capacitor

Capacitors can retain energy after equipment is switched off. This matters in power supplies, motor circuits, drives, HVAC equipment, flash units, amplifiers, and any circuit connected to mains power or high-voltage DC. A charged capacitor can damage a meter, harm nearby components, or injure the person handling it.

Before making contact with the terminals, follow a controlled sequence:

1. Disconnect the equipment from its power source and follow the required lockout procedure for the work environment.
2. Use the multimeter in voltage mode to confirm that the circuit and capacitor terminals are not energized.
3. Discharge the capacitor through an appropriately rated resistor rather than shorting the terminals with a screwdriver or probe tip.
4. After discharge, measure voltage again across the capacitor to confirm it has dropped to a safe level.
5. If the circuit can recharge the capacitor through another path, keep the device isolated until testing is complete.

Fluke service guidance commonly emphasizes turning power off, confirming power is off, and discharging high-voltage capacitors before capacitance measurement. The resistor value and power rating must be suitable for the voltage and stored energy involved. If those values are not known, stop and use a documented service procedure or a qualified technician.

Step-by-step method for capacitance mode

Capacitance mode is the preferred multimeter method when the meter supports it and the capacitor is within the meter’s specified range. The steps are straightforward, but small details affect the result.

1. Read the capacitor markings

Record the rated capacitance, voltage rating, polarity, and tolerance before testing. A capacitor marked 100 µF should not automatically be judged bad because it reads 88 µF unless the tolerance requires a tighter range. Many general-purpose capacitors have relatively wide tolerances, while timing, RF, instrumentation, and motor-run capacitors may have tighter requirements. Judge the result against the marking or datasheet, not against an assumed perfect value.

2. Isolate the capacitor from the circuit

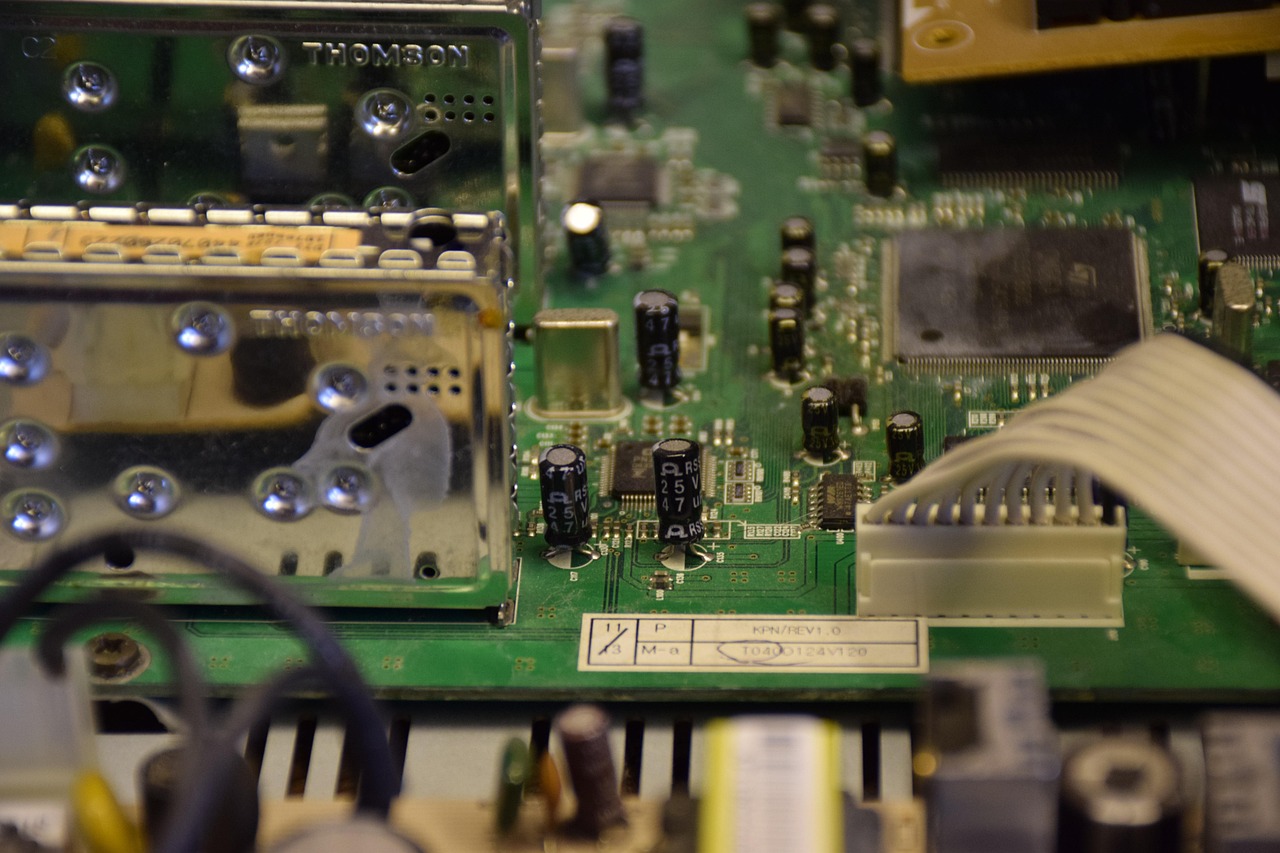

For the cleanest reading, remove the capacitor from the circuit or lift one lead. In-circuit readings can be distorted by components connected in parallel, leakage paths, semiconductor junctions, transformer windings, or other capacitors on the same node. If an in-circuit check appears abnormal, confirm it out of circuit before replacing the part.

3. Select capacitance mode

Turn the selector to the capacitance symbol, or use the function button if capacitance shares a dial position with another measurement. Autoranging meters will select a range after connection; manual meters require the closest suitable range. If the display shows overload, out of range, or does not settle, the capacitor may exceed the meter’s range, remain charged, be connected incorrectly, or have an internal fault.

4. Connect the probes correctly

For non-polarized capacitors, probe orientation normally does not matter. For polarized electrolytic capacitors, connect the red probe to the positive lead and the black probe to the negative lead unless the meter manual gives different instructions. Keep fingers away from bare metal probe tips, and keep the connection stable until the reading settles.

5. Compare the reading with tolerance

When the reading stabilizes, compare it with the allowable range. A 10 µF capacitor with a ±20% tolerance would generally be expected between 8 µF and 12 µF. A tighter-tolerance part must be judged more strictly. If the value is far below the lower limit, near zero, unstable, or over range, the capacitor needs closer investigation.

Using resistance mode when capacitance mode is unavailable

Some multimeters do not include capacitance mode. In that case, resistance mode can reveal a dead short or basic charging behavior, but it cannot provide a dependable capacitance value. This method is most useful for larger capacitors where the meter can visibly charge the device.

After the capacitor is safely discharged and isolated, set the meter to a high resistance range and connect the probes. A typical healthy capacitor may show low resistance at the moment of connection and then climb as the meter’s internal source charges it. On an analog meter, the needle may kick and then drift back. On a digital meter, the displayed resistance may rise toward overload. Reverse the probes, and the pattern may repeat as the capacitor discharges and charges in the opposite direction.

The interpretation is limited:

• A steady near-zero resistance suggests a shorted capacitor, although circuit connections must be ruled out.
• A reading that never changes may suggest an open capacitor, very small capacitance, or a test range that is not suitable.
• A rising resistance pattern only shows that the capacitor is accepting charge; it does not prove the part is good under operating conditions.

Resistance mode should therefore be used as a screening check, not as a replacement for capacitance, ESR, leakage, or load testing. See also: buying guides.

Common reading patterns and what they suggest

Capacitor test results are easier to interpret when they are separated into symptoms. The table below summarizes common multimeter observations and the cautious conclusions that can be drawn from them.

Multimeter observation	Possible meaning	Next step
Capacitance reads within marked tolerance	The capacitance value is likely acceptable at the meter’s test condition	If the circuit still fails, check ESR, leakage, ripple current stress, and surrounding components
Reading is much lower than rated value	Loss of capacitance, drying electrolyte, damaged dielectric, or incorrect test setup	Retest out of circuit and compare with the marked tolerance
Display shows overload or out of range	Capacitor may exceed meter range, still be charged, open, or faulty	Verify discharge, check meter range, and consider an LCR meter
Near-zero resistance in ohms mode	Possible shorted capacitor	Confirm out of circuit before replacing
Value changes when tested in circuit	Parallel paths or neighboring parts may be affecting the result	Lift one lead or remove the capacitor for a direct measurement
Small capacitor reads higher than expected	Lead and fixture capacitance may be significant	Use relative zero, shorter leads, or a proper fixture

The important point is that a multimeter result is evidence, not a verdict. A reading that is clearly outside tolerance is useful. A reading that is inside tolerance is encouraging, but it does not eliminate every possible failure mode.

When a multimeter is not enough

Many capacitor problems appear only when the part is stressed in a way that a handheld multimeter does not reproduce. Electrolytic capacitors may develop high ESR, creating heat and ripple problems even when capacitance is still close to nominal. Film capacitors may have dielectric damage or insulation weakness. Ceramic capacitors can vary with voltage, temperature, dielectric class, and measurement conditions.

DigiKey technical guidance notes that capacitance measurement conditions, including frequency and applied voltage, matter because capacitors are not ideal components. National Instruments guidance for low-level capacitance measurement also highlights the influence of parasitic capacitance from cables, switches, fixtures, and test setups. These issues may be minor for a rough maintenance check on a large capacitor, but they become important for pF-range parts, automated testing, sensor circuits, RF networks, and production inspection.

Use a more specialized instrument when the job requires more than a basic value check:

• LCR meter: better for controlled capacitance measurements at defined frequencies and equivalent circuit models.
• ESR meter: useful for finding high equivalent series resistance in electrolytic capacitors.
• Insulation resistance or leakage tester: needed when leakage under rated voltage is the concern.
• Oscilloscope with a known load: helpful for observing ripple, startup behavior, or timing behavior in the actual circuit.
• Component analyzer or curve tracer: useful for deeper fault analysis and comparative testing.

For field troubleshooting, the best workflow is often staged: visual inspection, voltage safety check, discharge, capacitance measurement, comparison with tolerance, and then ESR or leakage testing if the first result does not explain the fault.

Practical mistakes that lead to bad capacitor readings

The most common mistake is measuring a capacitor while it is still connected to other circuit paths. Parallel capacitors add to the reading, resistors create leakage paths, and semiconductors can make the meter behave unpredictably. Another common mistake is judging every capacitor against its nominal value rather than its tolerance. A good capacitance value also does not prove that the capacitor is healthy in service.

Small-value capacitors create another problem: the test leads may become part of the measurement. If the capacitor is only a few picofarads, long leads, clips, and nearby conductors can contribute enough capacitance to distort the result. Use short leads, avoid touching the metal terminals during measurement, and zero the residual capacitance if the meter supports it.

Large capacitors present the opposite challenge. They may take longer to charge, exceed the meter’s range, or retain dangerous energy. Give the meter time to settle, verify the specified capacitance range in the manual, and never assume that a discharged capacitor will stay discharged in a connected circuit.

Finally, avoid using continuity mode as a capacitor test. A beep may occur briefly while a capacitor charges, and that can be mistaken for a short. Use resistance mode for a rough dynamic check or capacitance mode for an actual value reading.

Frequently asked questions

Can I test a capacitor without removing it?

You can perform a quick in-circuit check, but the result may be misleading. Other components can sit in parallel with the capacitor and change the reading. If the measurement matters, isolate at least one lead or remove the capacitor before testing.

What does OL mean when measuring a capacitor?

OL usually means overload, over limit, or out of range, depending on the meter. In capacitance mode, it may indicate that the capacitor value is higher than the meter can measure, the capacitor is open or faulty, or the part was not safely discharged before testing. Check the meter manual and retest under controlled conditions.

Can a capacitor be bad even if the microfarad reading is correct?

Yes. A capacitor can read within capacitance tolerance while still having excessive ESR, leakage current, dielectric weakness, or poor behavior under temperature and voltage stress. Use an ESR meter, LCR meter, or leakage test when those failure modes are relevant.

Is it safe to discharge a capacitor with a screwdriver?

It is not good practice. A direct short can create sparks, damage terminals, stress the capacitor, or create a safety hazard. A properly rated resistor provides a more controlled discharge path, followed by a voltage check with the multimeter.

Which multimeter setting is best for testing capacitors?

Use capacitance mode when the meter has it and the expected value is within range. Use resistance mode only as a rough check for shorts, opens, or charge behavior. For precision, low-value capacitors, ESR concerns, or production testing, use an LCR meter or another dedicated instrument.
